Excel Add-in: Data Import Functions: New Mapping: Using the Depth Element

Certain forms require the use of the Depth element when mapping group data. The Depth element defines the last member in data group. If a form requires the Depth element, the element displays in the XML Source pane.

To use the Depth element when mapping group data:

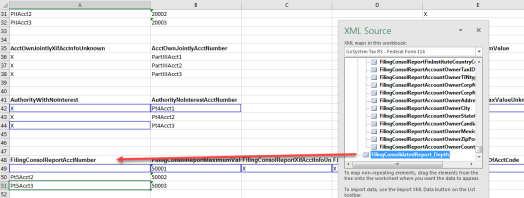

1. After mapping group data, select the Depth element in the XML Source pane. (For example, select FilingConsolidatedReport_Depth as shown in the figure below).
2. In the column where the group data is mapped, drag the FilingConsolidatedReport_Depth element to the last row of data.
